XBP9B-DMUT-002

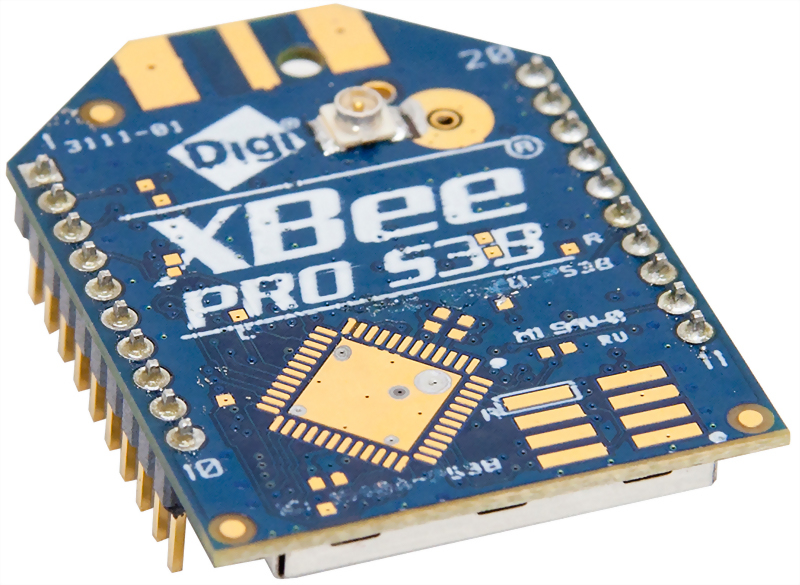

Digi XBP9B-DMUT-002, XBee-PRO 900HP (S3B)
Digi XBP9B-DMUT-002, XBee-PRO 900HP (S3B) DigiMesh, 900 MHz, 250 mW, U.FL, 200 Kbps
|
XBP9B-DMUT-002
|
|
| Hardware | |
| Processor |
ADF7023 transceiver, Cortex-M3 EFM32G230 @ 28 MHz; Programmable includes: Freescale MC9S08QE32 |
| Frequency Band |
902 to 928 MHz, software selectable channel mask for interference immunity |
| Antenna Options |
Wire, U.FL and RPSMSA |
| Performance | |
| RF Data Rate |
10 Kbps or 200 Kbps |
| Indoor / Urban Range* |
10 Kbps: up to 2000 ft (610 m); 200 Kbps: up to 1000 ft (305 m) |
|
Outdoor / Line-Of-Sight Range* |
10 Kbps: up to 9 miles (15.5 km); 200 Kbps: up to 4 miles (6.5 km) (with 2.1dB dipole antennas) |
| Transmit Power |
Up to 24 dBm (250 mW) software selectable |
| Reciver Sensitivity |
-101 dBm @ 200 Kbps, -110 dBm @ 10 Kbps |
|
Features |
|
|
Data Interface |
UART (3V), SPI |
| GPIO |
Up to 15 Digital I/O, 4 10-bit ADC inputs, 2 PWM outputs |
| Networking Topologies |
DigiMesh, Repeater, Point-to-Point, Point-to-Multipoint, Peer-to-Peer |
| Spread Spectrum |
FHSS (Software Selectable Channels) |
| Programmability | |
|
Memory |
N/A |
| CPU / Clock Speed | N/A |
| Power | |
| Supply voltage |
2.1 to 3.6 VDC |
| Transmit Current |
215 mA |
| Receive Current |
29 mA |
| Sleep Current |
2.5 uA |
| Regulatory Approvals | |
| FCC (USA) | MCQ-XB900HP |
| IC (Canada) |
1846A-XB900HP |
| C-TICK (Australia) | Yes |
| ANATEL (Brazil) | Yes |
| IDA (Singapore) | Yes |
