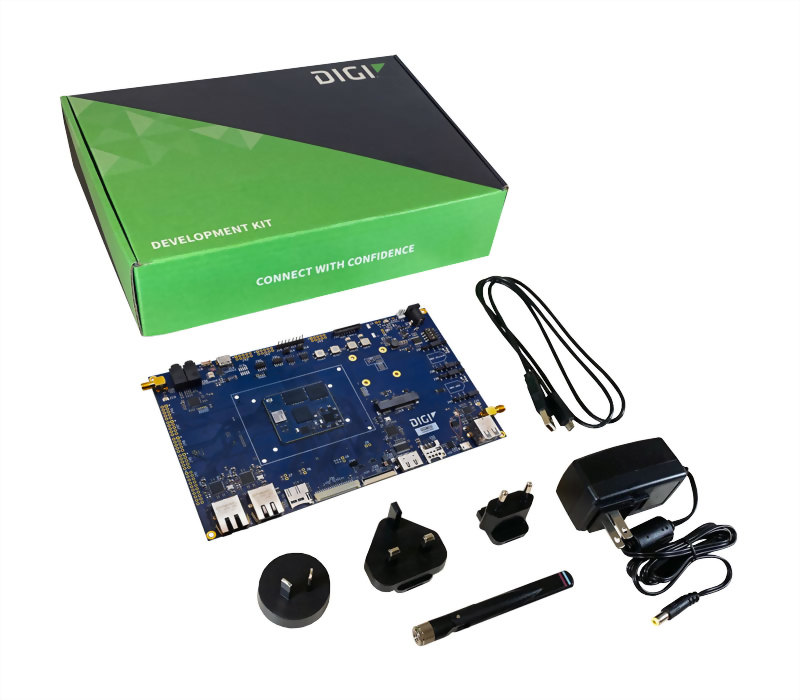

Digi CC-WMP157-Kit with development board and Digi ConnectCore MP157 dual 512 MB/512 MB wireless SOM
Digi CC-WMP157-Kit with development board and Digi ConnectCore MP157 dual 512 MB/512 MB wireless SOM
|
CC-WMP157-KIT
|
|
| Application processor |
STMicroelectronics STM32MP157C, Arm dual Cortex-A7 at 650 MHz Cortex-M4 at 209 MHz with FPU/MPU, 3D GPU, secure boot, crypto engine |
| Memory |
512 MB SLC NAND flash, 512 MB DDR3L |
| PMIC |
STMicroelectronics Power Management IC — STPMIC1 |
| Video/Graphics |
3D GPU (Vivante® — OpenGL® ES 2.0) running at up to 533 MHz, with performance up to 26 Mtriangle/s, 133 Mpixel/s Parallel LCD-TFT controller, up to 24-bit digital RGB888, up to WXGA (1366 × 768) at 60 fps or up to Full HD (1920 × 1080) at 30 fps MIPI® DSI 2 data lanes up to 1 Gbps each, up to WXGA at 60 fps (63 M pixels/s) or up to Full HD (1920 × 1080) at 30 fps |
| Camera | 8- to 14-bit camera |
| Security |
Secure boot, TrustZone® peripherals, 3x tamper pins including 1x active tamper, 2x TRNG (6 triple oscillators), 2x CRC calculation units 2x cryptographic processors, hardware acceleration with DMA support Encryption/decryption: DES/TDES: ECB (electronic codebook) and CBC (cipher block chaining) 64-, 128- or 192-bit key AES: ECB, CBC, GCM, CCM, and CTR (counter mode) chaining algorithms, 128-, 192- or 256-bit key Universal HASH: SHA-1, SHA-224 and SHA-256 (secure HASH algorithms), MD5, HMAC; Cortex-M4 resources isolation Digi TrustFence embedded security framework |
| Peripherals/Interfaces |
6x I2C, 4x UART + 4x USART, 6x SPI (3 with full duplex I2S) 4x SAI (stereo audio: I2S, PDM, SPDIF Tx), SPDIF Rx (4 inputs) HDMI-CEC 3x SDMMC up to 8-bit (SD / eMMC™ / SDIO) 2x CAN FD (including 1 TTCAN) 2x USB 2.0 high-speed host + 1x USB 2.0 full-speed OTG Up to 176 I/O ports with interrupt capability 2x ADCs (up to 16-bit) 1x temperature sensor 2x 12-bit D/A converters (1 MHz) 1x Digital Filter for Sigma Delta Modulator (DFSDM) with 8 channels/6 filters, internal or external ADC/DAC reference VREF+ 2x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input 2x 16-bit advanced motor control timers 10x 16-bit general-purpose timers (including 2 basic timers without PWM) 5x 16-bit low-power timers Secure RTC 2x 4 Cortex-A7 system timers (secure, nonsecure, virtual, hypervisor) 1x SysTick M4 timer 3x watchdogs (2x independent and window) |
| Ethernet |
10/100 M or Gigabit Ethernet GMAC IEEE 1588v2, MII/RMII/GMII/RGMII |
| Wireless |
Wi-Fi 5 dual-band 802.11a/b/g/n/ac 1x1 radio (up to 433.3 Mbps) with strong WPA3-Enterprise authentication/encryption −40 °C to 85 °C (−40 °F to 185 °F) full temperature range; Bluetooth 5 (Basic Rate, Enhanced Data Rate and Bluetooth Low Energy) |
| Operating Temperature |
Industrial: −40 °C to 85 °C (−40 °F to 185 °F); depending on use case and enclosure/system design |
| Storage Temperature |
−50 °C to 125 °C (−58 °F to 257 °F) |
| Relative Humidity |
5% to 90% (non-condensing) |
| Radio Approvals |
US, Canada, EU, Japan, Australia/New Zealand, Brazil, Mexico |
| Emissions/Immunity/Safety |
FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548 FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024 EN 301 489-3, Safety (IEC 62368-1); visit www.digi.com/resources/certifications for latest updates |
| Design Verification |
Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; vibration/shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |
| Mounting / Pin Count |
Common Digi SMTplus surface mount footprint using 76-pad edge castellated pads (1.27 mm pitch) or 245-pad LGA (1.27 mm pitch) option |
| Mechanical Dimensions |
29 mm x 29 mm x 3 mm (1.14 in x 1.14 in x 0.12 in) |
| Product Warranty |
3-year |
