  • Digi | CC-WMX-JN7A-NE

CC-WMX-JN7A-NE

Digi CC-WMX-JN7A-NE ConnectCore 6UL-2, 528 MHz, Industrial Temp, 1 GB SLC NAND, 1 GB DDR3, Dual 10/100 Ethernet, 802.11a/b/g/n/ac, Bluetooth® 5

The Digi ConnectCore® 6UL module delivers a secure and extremely cost-effective connected System-on-Module platform that is slightly bigger than a postage stamp. Its patent-pending Digi SMTplus™ surface mount form factor allows you to choose simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a versatile LGA option for ultimate design flexibility with access to virtually all interfaces.

Built on the NXP i.MX6UL UltraLite application processor, the module is the intelligent communication engine for today’s secure connected devices. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 5 connectivity.

Embedded device security is a critical design aspect for the growing number of connected applications (“IoT”) and the ConnectCore 6UL removes the implementation barriers by providing you with Digi TrustFence, a fully integrated secure module platform with complete Linux software support.

Smallest Size and Without Compromise

Smallest form factor. Lowest power. Wired or wireless. Pre-certified. The one i.MX6UL UltraLite SOM platform solution for all your connected devices.


Digi SMTplus™ for Design and Manufacturing Flexibility

Patent-pending Digi SMTplus form factor for optimized build/cost

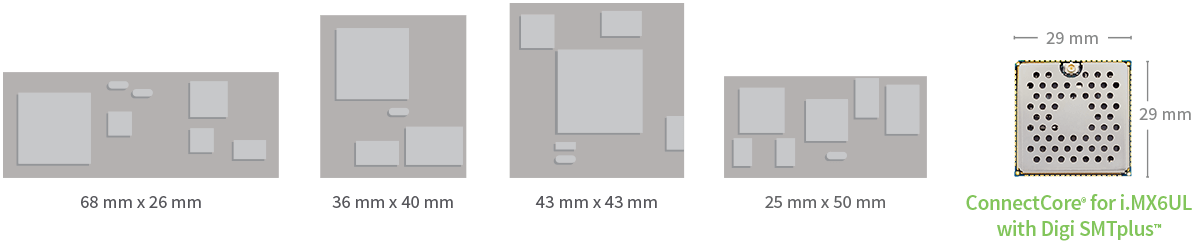

Ultra-compact size of 29 x 29 mm with reliable low-profile mounting

Simplified and cost-optimized design and manufacturing flexibility

  • 245-pad LGA (universal), or 76-pad (simple) castellated edge vias
  • Reduced carrier board layer count for simpler applications
  • No board connector cost, no board connector supply dependency

Simplified edge castellations (~76) only,or versatile LGA (~245 @ 1.27 mm pitch) for design flexibility


Designed for automated pick-and-place

Highly cost-effective manufacturing in low and high volume applications

Castellated edge vias also allow manual prototyping placement


Common footprint

Highly cost-effective manufacturing in low and high volume applications

Castellated edge vias also allow manual prototyping placement

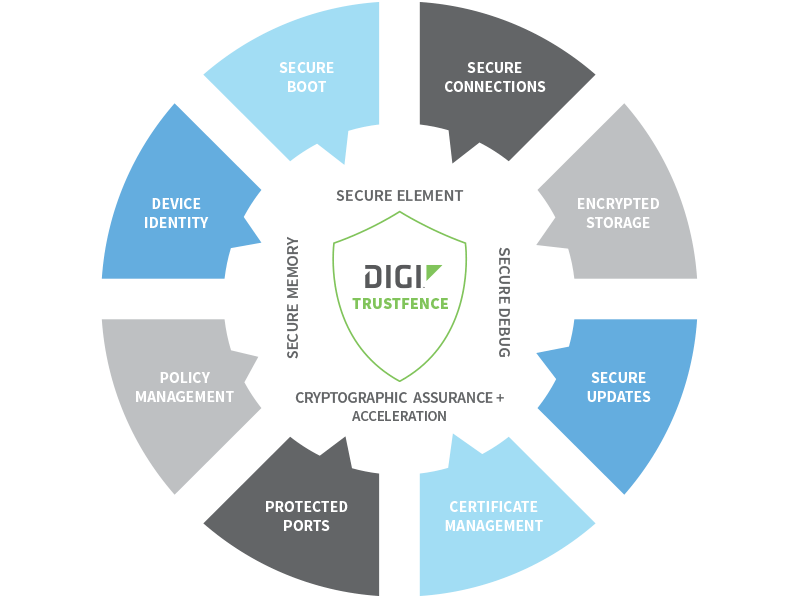

Build Secure Connected Embedded Devices Powered By Digi TrustFence

Device security is a critical design aspect for every connected device. The ConnectCore 6UL combines a secure module platform with a complete embedded device security software framework. Build products today that provide you and your customers with a secure product platform now and in the future.

  • Managed device security software framework
  • U-Boot and Linux platform integration
  • Transparent and future-proof architecture
  • Zero implementation effort

Model

Digi ConnectCore 6UL

Features

Application Processor

NXP i.MX6UL-2, ARM® Cortex®-A7 @ 528 MHz, 128 KB L2 cache, with NEON™ MPE (Media Processor Engine) co-processor and programmable smart DMA (SDMA) controller

Memory

256 MB / 512 MB / 1 GB NAND flash, 256 MB / 512 MB / 1 GB DDR3

PMIC

NXP PF3000

Video/Graphics

2D Pixel Processing Pipeline (PXP) for color-space conversion, scaling, alpha-blending, and rotation, 8- /16- /18- /24-bit parallel LCD Display up to WXGA (1366x768), 8- /10- /16- /24-bit Parallel CSI with BT.656 support

Security

AIS-31 compliant TRNG, ECC/AES256/TDES/ RSA encryption/decryption co-processor, SHA-1/224/256, FameXE PKI co-processor with 4096-bit RSA,/544-bit ECC/ ECDSA support, Secure RTC, Secure JTAG, Secure Storage, Secure Key Management, SPA/DPA/DFA (power/timing/fault attack protection), Tamper Monitor, Digi TrustFence® Embedded Security Framework

Peripherals/ Interfaces**

1 x dedicated MMC 4.5/SD 3.0/SDIO Port (1-/2-4-bit), 2 x USB 2.0 OTG with PHY, 3x I2S/SAI, 1 x S/PDIF Tx/Rx, 2 x FlexCAN (2.0b), 4 x I2C, 4 x SPI, 7 x UART, 4 x Timer, 8 x PWM, 3 x Watchdog, 2 x 12-bit ADC (10 channels) with 4-wire/5-wire touch controller, up to 103 GPIOs

External Bus

16-bit address / up to 16-bit data (multiplexed and non-multiplexed modes)

Ethernet

Dual 10/100 Mbit Ethernet MAC + IEEE 1588

Wireless

802.11a/b/g/n/ac 1x1 (MCS 0-9), Bluetooth 5 with strong WPA2-Enterprise authentication/encryption for Wi-Fi connections

MCA™ Microcontroller Assist

Ultra-low power ARM® Cortex®-M0+, up to 48 MHz (NXP Kinetis KL03: KL03P24M48SF0)

Operating Temperature

Industrial: -40° C to 85° C (-40° F to 185° F); depending on use case and enclosure/system design

Storage Temperature

-50° C to 125° C (-58° F to 257° F)

Relative Humidity

Relative humidity 5% to 90% (non-condensing)

Radio Approvals

        US, Canada, EU, Japan, Australia/New Zealand

Emissions/Immunity/ Safety

FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent)

Design Verification

Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT

Mounting/Pin Count

Common Digi SMTplus* surface mount footprint using 76-pad edge castellated pads (1.27 mm pitch) or 245-pad LGA (1.27 mm pitch) option

Mechanical Dimensions

29 mm x 29 mm x 3.5 mm (1.14 in x 1.14 in x 0.14 in)

Power Consumption

Idle Mode (Linux up, no networking): 100mA @ 5V

Idle Mode (Linux up, with 25% Wi-Fi transmit): 118mA @ 5V

Standby Mode (w/memory refresh): 6mA @ 5V

Ultra Low-Power Modes

Event Trigger Mode: 2.5 µA @ 3V (i.MX6UL off, MCA LLS w/HS Comparator active)

Scheduled Wake-Up Mode: 2.5 µA @ 3V (i.MX6UL off, MCA LLS w/HS Comparator active)

Maxium Radio-Frequency Power

63.1 mW

Operating Frequency Band

2402 - 2480 MHz; 5.250 - 5.350 GHz; 5.470 - 5.725 GHz

Product Warranty

3-year



Intelligent and connected embedded system-on-module based on the NXP i.MX6 UL, with turnkey Linux software support in a stamp-sized form factor

Stamp-sized, secure, connected System-on-Module platform

NXP i.MX6UL-2, Cortex-A7 @ 528 MHz

256 MB / 512 MB / 1 GB NAND flash, 256 MB / 512 MB / 1 GB DDR3

Patent-pending low-profile Digi SMTplus™ form factor

Integrated Digi Microcontroller Assist™ for 2.5 µA ultra-low power modes

Pre-certified 802.11a/b/g/n/ac + Bluetooth® 5 option

Integrated dual 10/100 Ethernet connectivity

Digi TrustFence® embedded device security framework

Royalty-free embedded Linux® software platform

Turnkey development available from Digi WDS

Related Products

CC-WMX93-KIT

CC-WMX93-KIT

CC-MX-FR6D-ZN

CC-MX-FR6D-ZN

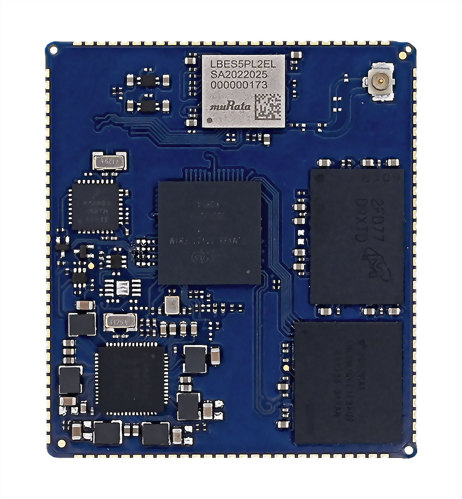

CC-WMX-YC7D-KN
