XB3-24AUM-J
Digi XB3-24AUM-J, XBee 3, 2.4 Ghz

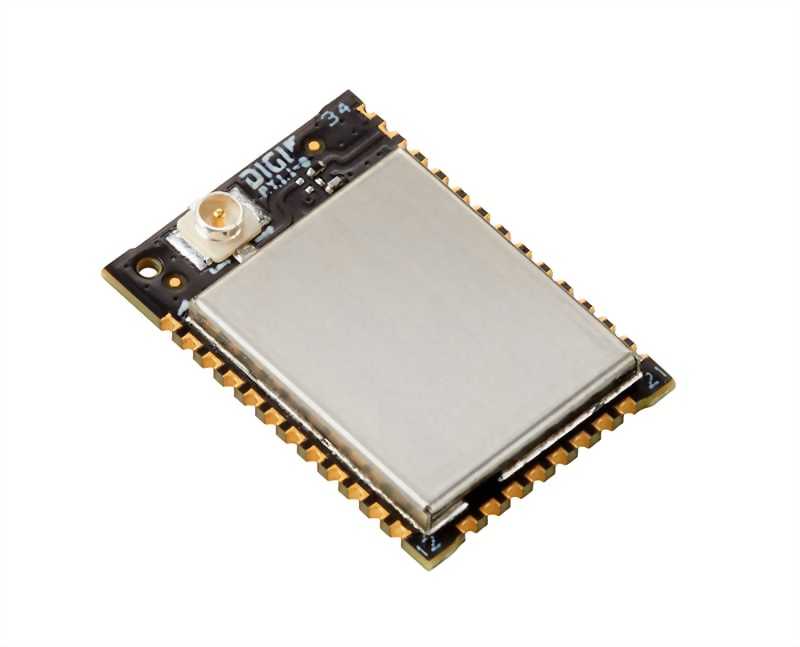

Digi XB3-24AUM-J, XBee 3, 2.4 Ghz, 802.15.4, Micro, U.FL Ant, MMT
|
XB3-24AUM-J
|
|
| Performance | |
|
Transceiver Chipset |
Silicon Labs EFR32MG SoC |
| Data Rate |
RF 250 Kbps, Serial up to 1 Mbps |
|
Indoor / Urban Range |
Up to 60 m (200 ft) |
| Outdoor / RF LINE-OF-SIGHT Range |
Up to 1200 m (4000 ft) |
| Transmit Power |
+8 dBm |
| Receiver Sensitivity (1%Per) |
-103 dBm Normal Mode |
|
Features |
|
| Serial Data Interface |
UART, SPI, I2C |
| Configuration Method |
API or AT commands, local or over-the-air (OTA) |
| Frequency Band |
ISM 2.4 GHz |
| Form Factor |
Micro, through-hole, surface mount |
| Interference Immunity |
DSSS (Direct Sequence Spread Spectrum) |
|
ADC Inputs |
(4) 10-bit ADC inputs |
| Digital I/O | 15 |
| Antenna Options |
Through-hole: PCB Antenna, U.FL Connector, RPSMA Connector SMT: RF Pad, PCB Antenna, or U.FL Connector Micro: U.FL Antenna, RF Pad, Chip Antenna |
|
Operating Temperature |
-40 ºC to 85 ºC (-40 ºF to 185 ºF) |
| Dimensions (L x W x H) |
Through-hole: 2.438 x 2.761 cm (0.960 x 1.087 in) SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in) Micro: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in) |
|
Programmability |
|
| Memory |
1 MB / 128 KB RAM |
| CPU / Clock Speed |
HCS08 / up to 50.33 MHz |
|
Networking And Security |
|
| Protocol |
802.15.4 |
| Encryption |
128/256 bit AES |
|
Reliable Packet Delivery |
Retries/Acknowledgements |
| IDS |
PAN ID and addresses, cluster IDs and endpoints (optional) |
| Channels |
16 channels |
| Power Requirements | |
|
Supply Voltage |
2.1 to 3.6 V |
|
Transmit Current |
135 mA at 19 dBm |
| Receive Current |
17 mA |
| Power-Down Current |
2 micro Amp at 25 ºC (77 ºF) |
|
Regulatory Approvals |
|
|
FCC, IC (North America) |
Yes |
| ETSI (Europe) | Yes |
|
RCM (Australia) |
Yes |
| ANATEL (Brazil) | Yes |
| TELECK MIC (Japan) | Yes |
| KCC (South Korea) | Yes |
