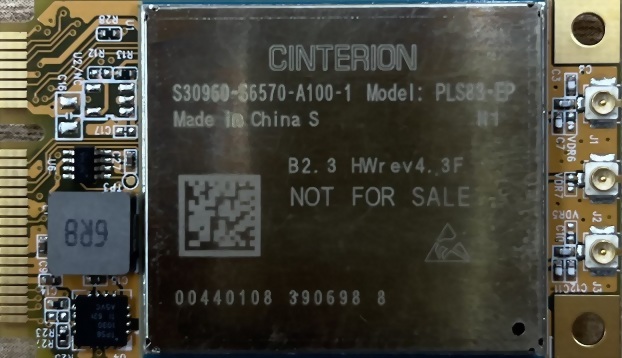

PLS83-W Mini card
The Telit-Cinterion PLS83-W IoT Module provides global high-speed IoT connectivity with 2G/3G fallback, with 18 Band LTE Cat.4, Eight Band 3G UMTS/WCDMA, and Quad-Band GSM for seamless coverage when roaming across different wireless networks. When a global solution is not needed, a variety of regional variants with the latest network band groupings deliver targeted connectivity for North America, Europe, Asia-Pacific, Latin America and Japan.
Mini PCIe Pin Definition
|
Pin No |
Signal |
Function description |
Direction from Module |
Voltage |
|
1 |
#WAKE |
Active low to wake up the host application |
Output |
+1.8V |
|
2 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
3 |
Reserved |
Reserve for future used |
Not connect |
|
|
4 |
GND |
Ground |
Ground |
|
|
5 |
Reserved |
Reserve for future used |
Not connect |
|
|
6 |
Reserved |
Reserve for future used |
Not connect |
|
|
7 |
Reserved |
Reserve for future used |
Not connect |
|
|
8 |
UIM_PWR |
SIM power supply |
Output |
+1.8V/+2.85V |
|
9 |
GND |
Ground |
Ground |
|
|
10 |
UIM_DATA |
SIM data |
Input/Output |
+1.8V/+2.85V |
|
11 |
+1.8V |
Power supply to host |
Output |
+1.8V |
|
12 |
UIM_CLK |
SIM clock |
Output |
+1.8V/+2.85V |
|
13 |
N/C |
N/C |
N/C |
|
|
14 |
UIM_RESET |
SIM reset |
Output |
+1.8V/+2.85V |
|
15 |
GND |
Ground |
Ground |
|
|
16 |
N/C |
N/C |
N/C |
|
|
17 |
N/C |
N/C |
N/C |
|
|
18 |
GND |
Ground |
Ground |
|
|
19 |
Reserved |
Reserve for future used |
Not connect |
|
|
20 |
N/C |
N/C |
N/C |
|
|
21 |
GND |
Ground |
Ground |
|
|
22 |
#PERST |
1. Active high to turn on Module (+3.3V) 2. Active low to turn off Module (0V) |
Input |
+3.3V |
|
23 |
Reserved |
Reserve for future used |
Not connect |
|
|
24 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
25 |
Reserved |
Reserve for future used |
Not connect |
|
|
26 |
GND |
Ground |
Ground |
|
|
27 |
GND |
Ground |
Ground |
|
|
28 |
N/C |
N/C |
N/C |
|
|
29 |
GND |
Ground |
Ground |
|
|
30 |
N/C |
N/C |
N/C |
|
|
31 |
Reserved |
Reserve for future used |
Not connect |
|
|
32 |
N/C |
N/C |
N/C |
|
|
33 |
N/C |
N/C |
N/C |
|
|
34 |
GND |
Ground |
Ground |
|
|
35 |
GND |
Ground |
Ground |
|
|
36 |
USB DN |
USB D- |
Input/Output |
+3.3 ± 0.3V |
|
37 |
GND |
Ground |
Ground |
|
|
38 |
USB DP |
USB D+ |
Input/Output |
+3.3 ± 0.3V |
|
39 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
40 |
GND |
Ground |
Ground |
|
|
41 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
42 |
#LED_WWAN |
Active low to show module status |
Output (O.C) |
+3.3V |
|
43 |
GND |
Ground |
Ground |
|
|
44 |
N/C |
N/C |
N/C |
|
|
45 |
PCM_CLK |
Digital audio clock |
Output |
+1.8V |
|
46 |
N/C |
N/C |
N/C |
|
|
47 |
PCM OUT |
Digital audio data output |
Output |
+1.8V |
|
48 |
N/C |
N/C |
N/C |
|
|
49 |
PCM IN |
Digital audio data input |
Input |
+1.8V |
|
50 |
GND |
Ground |
Ground |
|
|
51 |
PCM FSC |
Digital audio SYNC |
Output |
+1.8V |
|
52 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
Offering IoT optimized speeds of 150 Mbit/s download and 50 Mbit/s uplink, the PLS83 IoT module is ideal for industrial IoT applications that require speed and optimal coverage, such as global tracking and tracing, industrial gateways, point of sales, and transportation solutions. These applications require high-speed data and the longevity and stability of LTE networks, plus continuous coverage in regions where a 4G connection is not present.
