PLS8 Series Mini card
The Telit-Cinterion PLS8 LTE cellular machine-to-machine (M2M) module offers a smart solution for wireless connectivity today and in the future. With the newest 3GPP Rel.9 LTE technology, PLS8 is optimized for high bandwidth computing, enabling highest available speeds for up- and downlink in mobile networks.

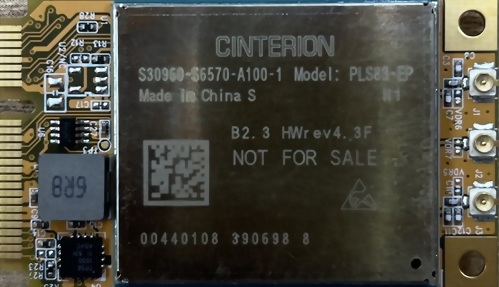

PLS8 series mini card is a powerful mini PCIe card integrating the embedded Cinterion PLS8 series LGA module
This document describes the hardware, mechanical and software elements of the PLS8 series mini card. It helps you quickly retrieve interface specifications; electrical, mechanical and software details and information on the requirements to be considered for integrating further components into the sub-system.
Please refer to PLS8 serues spec for more details
Mini PCIe Pin Definition
|
Pin No |
Signal |
Function Description |
Direction from Module |
Voltage |
|
1 |
#WAKE |
Active low to wake up the host application |
Output |
+1.8V |
|
2 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
3 |
Reserved |
Reserve for future used |
Not connect |
- |
|
4 |
GND |
Ground |
Ground |
- |
|
5 |
Reserved |
Reserve for future used |
Not connect |
- |
|
6 |
Reserved |
Reserve for future used |
Not connect |
- |
|
7 |
Reserved |
Reserve for future used |
Not connect |
- |
|
8 |
UIM_PWR |
SIM power supply |
Output |
+1.8V/+2.85V |
|
9 |
GND |
Ground |
Ground |
- |
|
10 |
UIM_DATA |
SIM data |
Input/Output |
+1.8V/+2.85V |
|
11 |
+1.8V |
Power supply to host |
Output |
+1.8V |
|
12 |
UIM_CLK |
SIM clock |
Output |
+1.8V/+2.85V |
|
13 |
N/C |
N/C |
N/C |
- |
|
14 |
UIM_RESET |
SIM reset |
Output |
+1.8V/+2.85V |
|
15 |
GND |
Ground |
Ground |
- |
|
16 |
N/C |
N/C |
N/C |
- |
|
17 |
N/C |
N/C |
N/C |
- |
|
18 |
GND |
Ground |
Ground |
- |
|
19 |
Reserved |
Reserve for future used |
Not connect |
- |
|
20 |
N/C |
N/C |
N/C |
- |
|
21 |
GND |
Ground |
Ground |
- |
|
22 |
#PERST |
1. Active high to turn on Module (+3.3V) 2. Active low to turn off Module (0V)
|
Input |
+3.3V |
|
23 |
Reserved |
Reserve for future used |
Not connect |
- |
|
24 |
+3.3V |
Power supply |
Input |
+3.3V |
|
25 |
Reserved |
Reserve for future used |
Not connect |
- |
|
26 |
GND |
Ground |
Ground |
- |
|
27 |
GND |
Ground |
Ground |
- |
|
28 |
N/C |
N/C |
N/C |
- |
|
29 |
GND |
Ground |
Ground |
- |
|
30 |
N/C |
N/C |
N/C |
- |
|
31 |
Reserved |
Reserve for future used |
Not connect |
- |
|
32 |
N/C |
N/C |
N/C |
- |
|
33 |
N/C |
N/C |
N/C |
- |
|
34 |
GND |
Ground |
Ground |
- |
|
35 |
GND |
Ground |
Ground |
- |
|
36 |
USB DN |
USB D- |
Input/Output |
+3.3 ± 0.3V |
|
37 |
GND |
Ground |
Ground |
-
|
|
38 |
USB DP |
USB D+ |
Input/Output |
+3.3 ± 0.3V |
|
39 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
40 |
GND |
Ground |
Ground |
- |
|
41 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
|
42 |
#LED_WWAN |
Active low to show module status |
Output (O.C) |
+3.3V |
|
43 |
GND |
Ground |
Ground |
- |
|
44 |
N/C |
N/C |
N/C |
- |
|
45 |
PCM_CLK |
Digital audio clock |
Output |
+1.8V |
|
46 |
N/C |
N/C |
N/C |
- |
|
47 |
PCM OUT |
Digital audio data output |
Output |
+1.8V |
|
48 |
N/C |
N/C |
N/C |
- |
|
49 |
PCM IN |
Digital audio data input |
Input |
+1.8V |
|
50 |
GND |
Ground |
Ground |
- |
|
51 |
PCM FSC |
Digital audio SYNC |
Output |
+1.8V |
|
52 |
+3.3V |
Power supply |
Input |
+3.3 ± 0.3V |
Enabling speeds up to 100 Mbps for downlink and 50 Mbps for uplink, the ruggedized PLS8 module offers an ideal solution for the challenging requirements of high bandwidth mobile computing, video security solutions, medical equipment, payment systems and gateway routers.
The Cinterion PLS8 module and its variants, PLS8-E and PLS8-US, provide true worldwide coverage and reliability even while roaming across different wireless networks.
Two antenna pads enable diversity support for improved data speeds and an optimized GPS antenna path eliminates blanking and provides more consistent performance.
For investment protection, it supports multiple designs through footprint compatibility with Cinterion 3G GSM and CDMA modules including PHS8, PXS8 and PVS8.
Like all Cinterion products, the PLS8 comes with full type approval (FTA) and pre-certification from the largest global network operators which speeds time to market.
