IX20-W0G4
Digi IX20-W0G4 , LTE Cat 4 Global, with WIFI

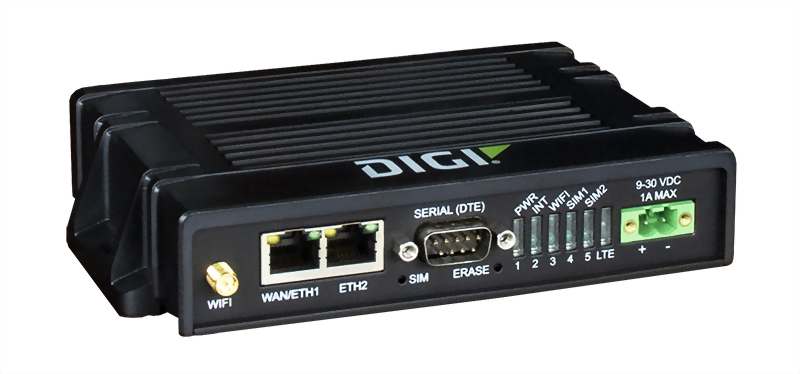

Digi IX20-W0G4 — LTE Cat 4 Global, Wi-Fi, (2) Ethernet, DB-9 RS-232
|
IX20-W0G4
|
|
| Cellular | |
|
LTE (G4) With Digi Core |
LTE Cat 4 (Global): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G: 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature |
| Connectors |

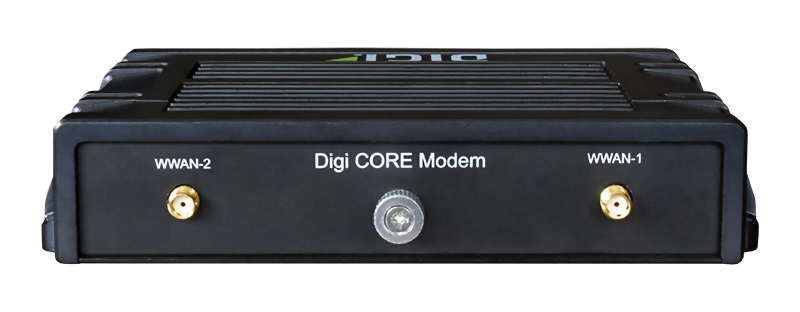

(2) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
(2) Mini-SIM (2FF) |
|
SIM Security |
Secured in cellular module |
|
Wi-Fi |
|
| Module |
1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) |
|
Authentication |
TACACS+, Enterprise RADIUS |
| MODES |
Client mode and access point mode simultaneously |
| Clients |
Maximum 10 clients (access point mode: regardless of combination of clients and access points) |
| Access Points |
Maximum 2 access points (access point mode: regardless of combination of clients and access points) |
| Security |
WPA/WPA-2 personal, WPA/WPA-2 enterprise |
| Connectors |
(1) 50 Ω SMA (center pin: male) |
| Software and Management | |
|
Remote Management |
Digi Remote Manager; SNMP v2/v3 (user installed/managed) |
| Local Management |
Web UI (HTTP/HTTPS); CLI (Telnet, SSH) |
| Management/Troubleshooting Tools |
FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow,iPerf, Dynamic DNS, ping, traceroute |
| Memory |
256 MB RAM, 256 MB flash |
| Ethernet | |
| PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
|
Serial |
|
|
Ports |
(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) |
|
Physical |
|
|
Dimensions (L x W x H) |
107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in) |
|
Weight |
0.65 kg (1.4 lb) |
|
Status LEDs |
Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE |
| Enclosure |
Glass-filled polyphenylene sulphide (PPS) / IP30 |
|
Power Requirements |
|
|
Power Input |
9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included |
| Power Consumption |
1.5 W (light traffic flow), 3.5 W (peak data transmission); 1.4 W (low power mode, idle traffic, no Ethernet WAN) |
|
Environmental |
|
|
Operating Temperature |
-40° C to 70° C (-40° F to 158° F) |
|
Storage Temperature |
-40° C to 85° C (-40° F to 185° F) |
| Relative Humidity |
5% to 95% (non-condensing) |
|
Accessories |
|
|
Availalble accessories |

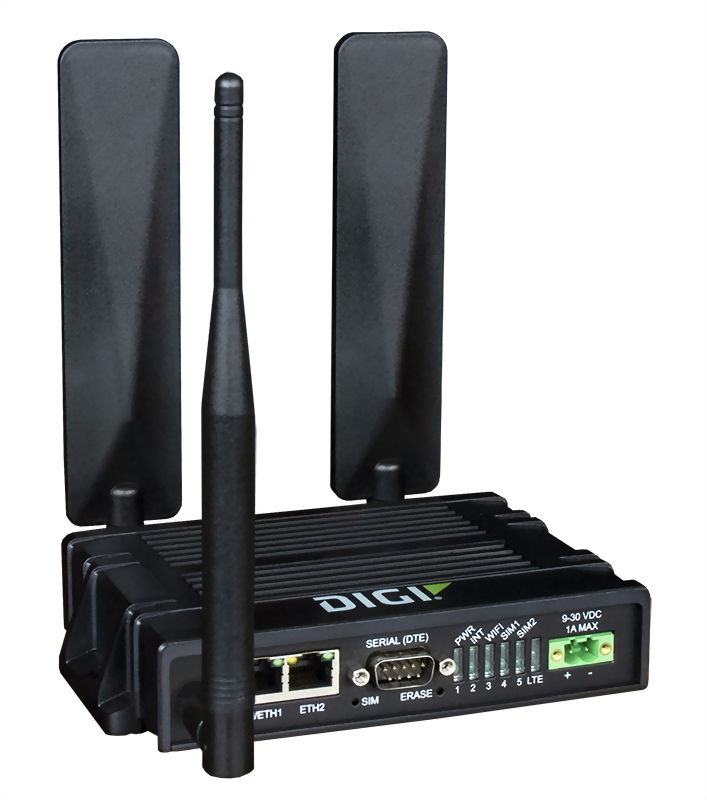

Accessories not included. Available accessories: industrial extended temperature or commercial power supply (required), and Wi-Fi, cellular and GPS antennas, Ethernet cable, DIN rail clip kit and DIN rail mounting bracket kit (recommended / optional) |
|
Approvals |
|
|
Cellular |
Visit www.digi.com/resources/certifications for latest cellular certifications |
|
Safety |
IEC62368-1, CB, EN62311 |
|
Environmental |
ROHS3 |
|
Emissions / Immunity |
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32 |
|
Warranty |
|
|
Product Warrannty |
3 year |
